Jean Doré Beach

Sector: Recreational

Location: Montréal, Québec

Type of projet: Water suitable for swimming

Type of water: Surface water(Lake water)

System Capacity: 3 302 US gallons /min

Controlled parameters: Turbidity and Total Suspended Solid (TSS)

Project Overview:

• The lake water at Jean Doré Beach on Île-Notre-Dame needed to be treated to ensure the public could swim there safely.
• The presence of suspended particles was hindering the disinfection process of the recirculated water, and thus affecting the overall water quality and clarity.
• The project required a high-capacity filtration system capable of maintaining consistent water quality prior to disinfection.
• Operational reliability and performance were essential due to public use and seasonal demand.

Magnor Solution:

• Multimedia filtration system that includes:
• Quadruplex filter system

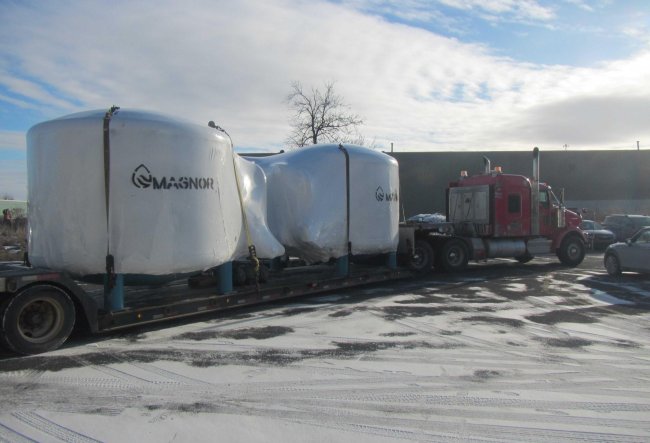

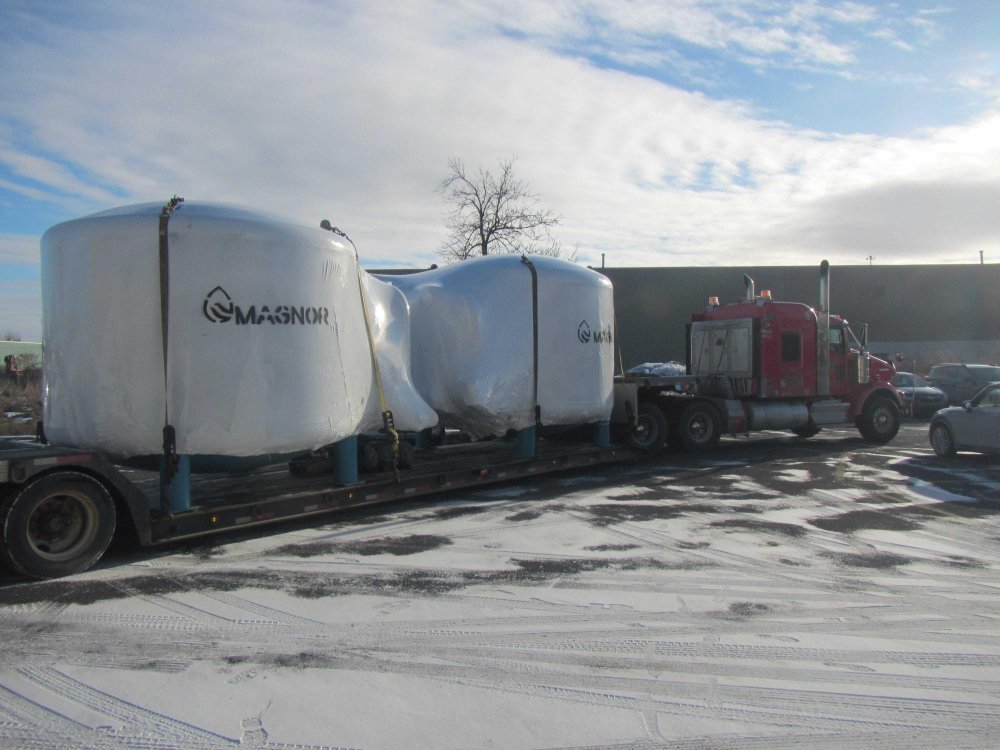

• Four (4) Ø132” x 72” painted steel tanks

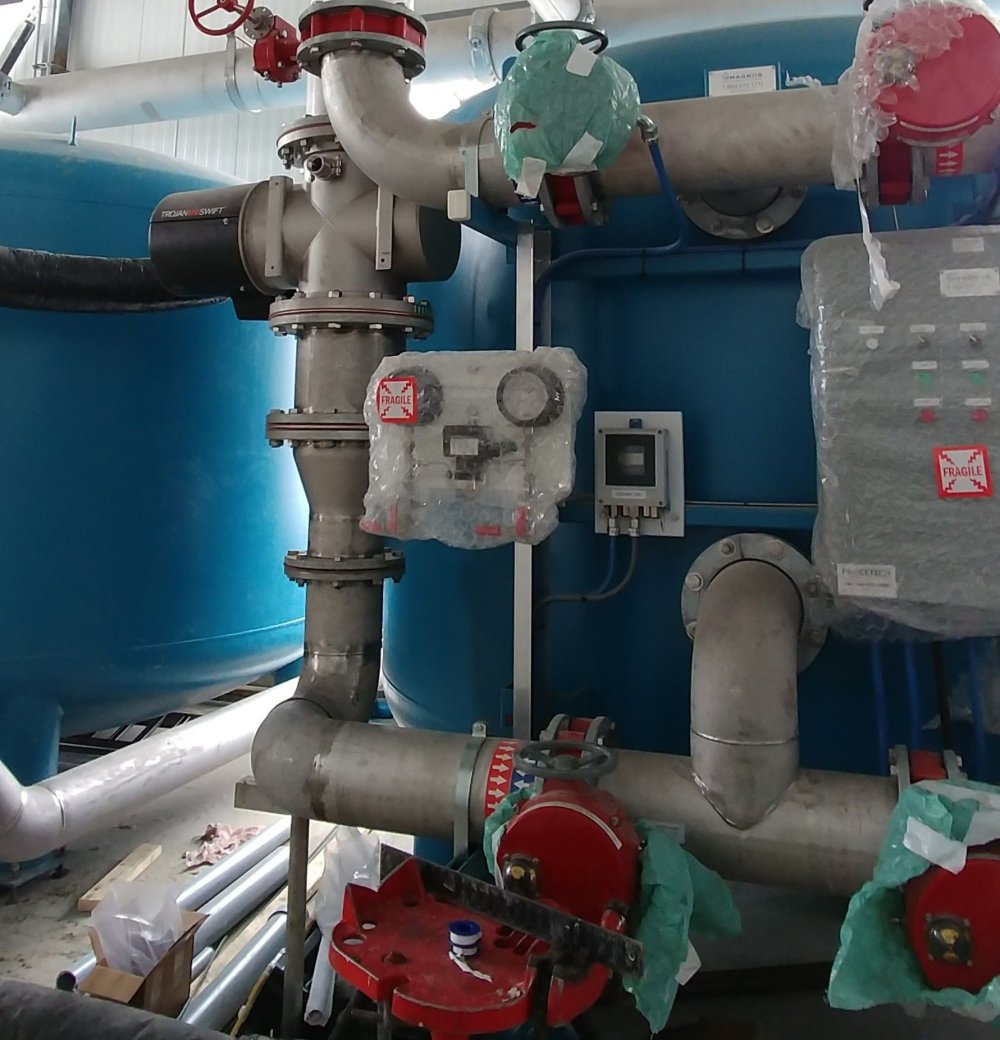

• Control panel PVC piping
• Electric butterfly valves
• Endress & Hauser instrumentation
